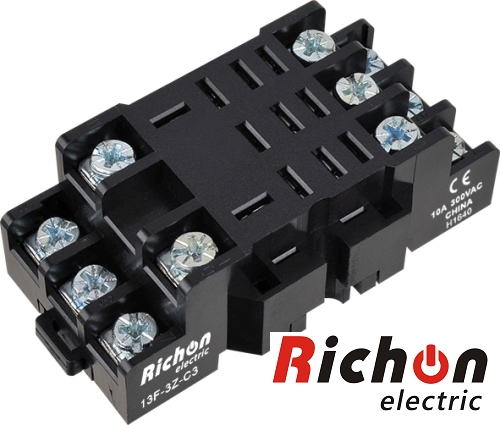

13FF power relay socket
13F-3Z-C3
KLY3, Din-rail mounted relay socket
Description
|
Electrical |
|
| Contact form: | 3 C |
| Rated voltage: | 300 VAC |
| Rated current: | 10 A (per pole) |
| Dielectric strength (for one minute): | 2000 VAC (between input & output) |
| Max wire range: | 2 x 1.5 mm2 |
| Applicable relay type: | 13F (3 poles) |
|
Mechanical |
|
| Steel retainer: | available |
| White plastic tag: | non-available |
| Modules: | non-available |
| Terminal torque: | 0.8 Nm |
| Ambient temperature: | -40oC - + 70oC |
| Wire strip length: | 7 mm |
