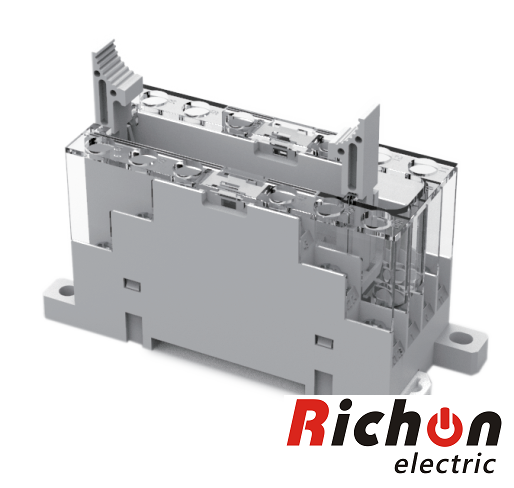

A6-6Z-C2
A6-6Z-C2

A6-6Z-C2

● The dielectric strength (between coil and contacts) can reach 2500VAC and the insulation resistance is 1000M
● DIN rail or Screw mounting
● With diode to protect the coil and to eliminate the backflow
● With finger protection device
​​​​​​​● Buit
INQUIRY
Description
Features

Ambient temperature：25 ℃ ～ 55 ℃

Rated voltage：250VAC

Rated current：6A

Input voltage：6~110VDC

Dielectric strength：2500VAC

Terminal torque：1.0Nm

Wire strip length：7mm

Max wire size：(square millimeter)  2x1.5

                                         AWG  2 × 16

Applicable relay type：HFA6
