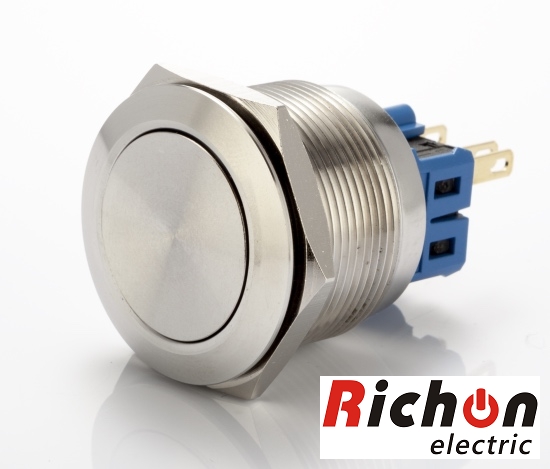

25mm anti-vandal switch

J25-211

25mm 1 pole momentary push button, non-illuminated type
Description
Part Number : J25-211/J25-311,J25-212/J25-312
1.Mounting Hole Size:  Φ25mm
2. Switch Rating :   5A/250VAC
3. Contact Configuration:  1NO1NC,2NO2NC
4.Operation Type:  Momentary/Latching
5.TheFront Shape:  Flat
6.The Crust Meterial:  Stainelss steel(304,316),Nickel-plated Brass, Black Anodised Aluminum
7.Protection Degree:  IP67,IK09
8.Terminal Type:   Pin Terminal
9.Illuminated type: Non-illumination.
12.Lamp life: 50000 Hours
Item No. J25-211 J25-311
Specification Ring 1NO1NC Momentary Ring 1NO1NC Latching
Item No. J25-212 J25-312
Specification Ring 2NO2NC Momentary  Ring 2NO2NC Latching
Terminal Type Pin Terminal (2.8*0.5mm)
Switch Type C(Single-break fast-motion changeover contact)
Switch Specification Ith: 5A Ui :250VAC
Contact Resistance ≤50m Ω
Insulation Resistance ≥1000MΩ
Dielectric Strength 2000V AC
Operating Temperature -20degree~+55degree
Machanical Life  >1,000,000 times
Electrical Life  >200,000 times
Panel Thickness 1~10mm
Torque 5~14Nm
Operating Pressure 3-5N
Operating Stroke  About 3.1mm
Protection Degree IP67,IK09
Material Contact Sliver Alloy,Gold plated Sliver
Button Stainless steel,Nickel-plated brass,Black Aluminum
Case Stainless steel Nickel-plated brass,Black Aluminum
Base PBT
RoHS Can be made to order
