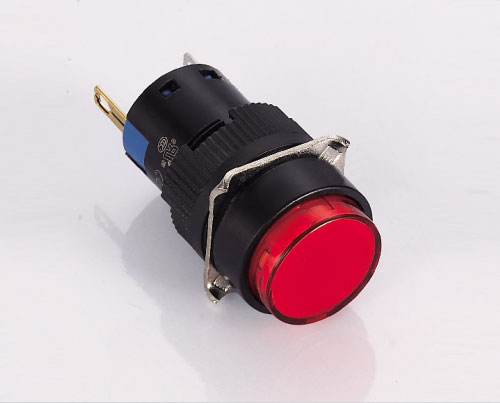

Plastic Indicator Lamp
K16-170
16mm LED indicator
Description
K16-170 pilot lamp has a round, color lens. Made for 16 mm (5/8") mounting holes. Lens illuminated. Rated IP 65. Pilot lamps, or pilot lights, are utilized in different applications to show when an electrical circuit is closed.
Specifications
- Lens Shape & Color- Round, R/G/B/Y/W/O
- LED Voltage- 3,6,12,24VDC/110VAC,220VAC
- LED Nominal Current- 15 mA
- LED Lifespan- 50,000 hrs.
- Contact Resistance- Max. 50 mOhm
- Insulation Resistance- 100 MOhm at 500VDC
- Dielectric Strength- 2000 VAC for 1 min
- Vibration Resistance- 25-55Hz dual amplitude: 0.75mm
- Shock Resistance- Endurance: 500m/s2, Operating error: 200m/s2
- Operating Temperature: -25 C to +55 C (-13 F to 131 F)
- Storage Temperature: -30 C to +80 C (-22 F to 176 F)
- Ambient Humidity- 45-85% RH
- Degree of Protection- IP 65
- Terminal Soldering 20W 5sec / 260 C 3sec
- Approvals- UL & CUL Recognized, CE
